CU 165

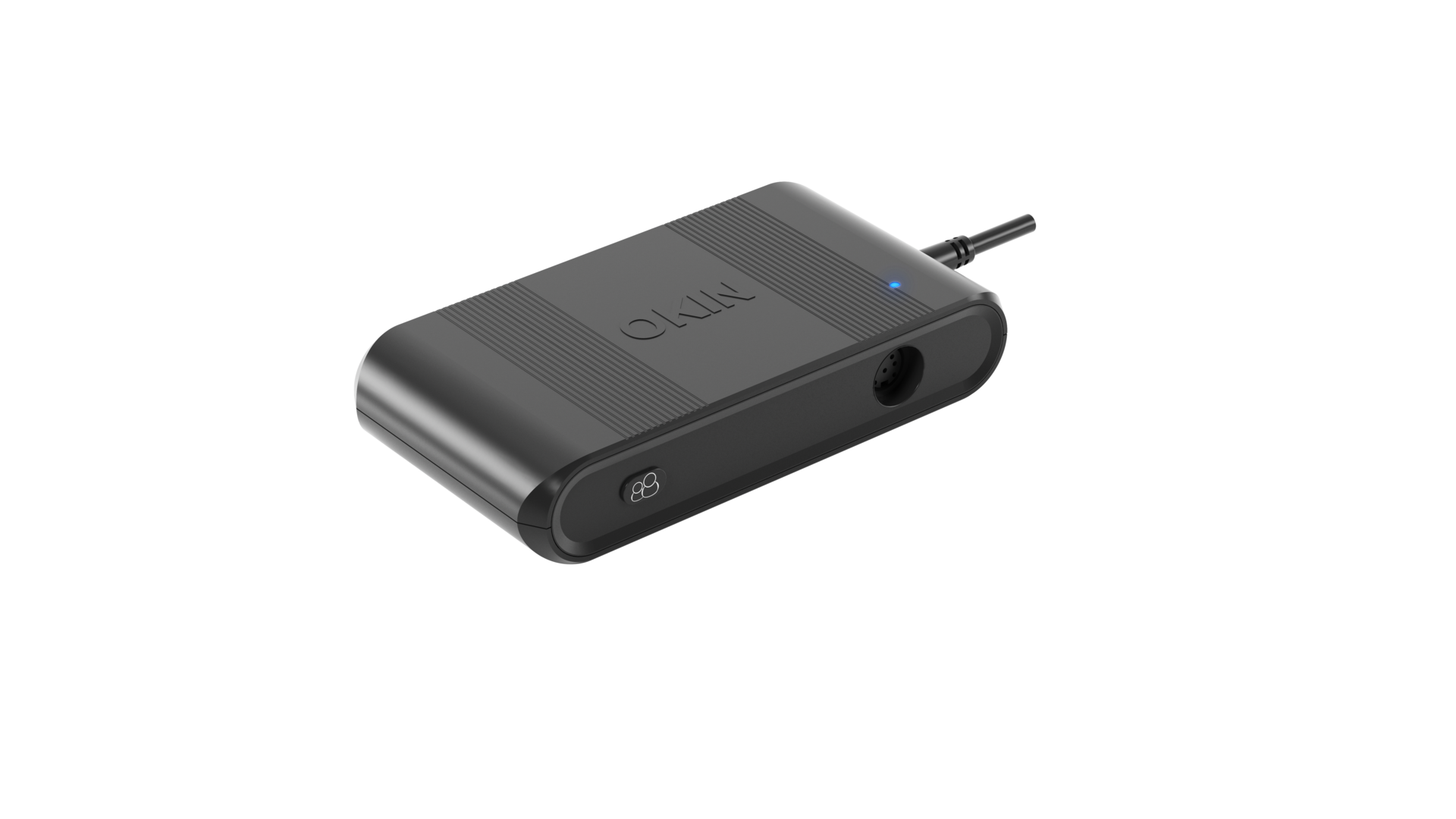

CU165: Wide range of functions in a compact housing

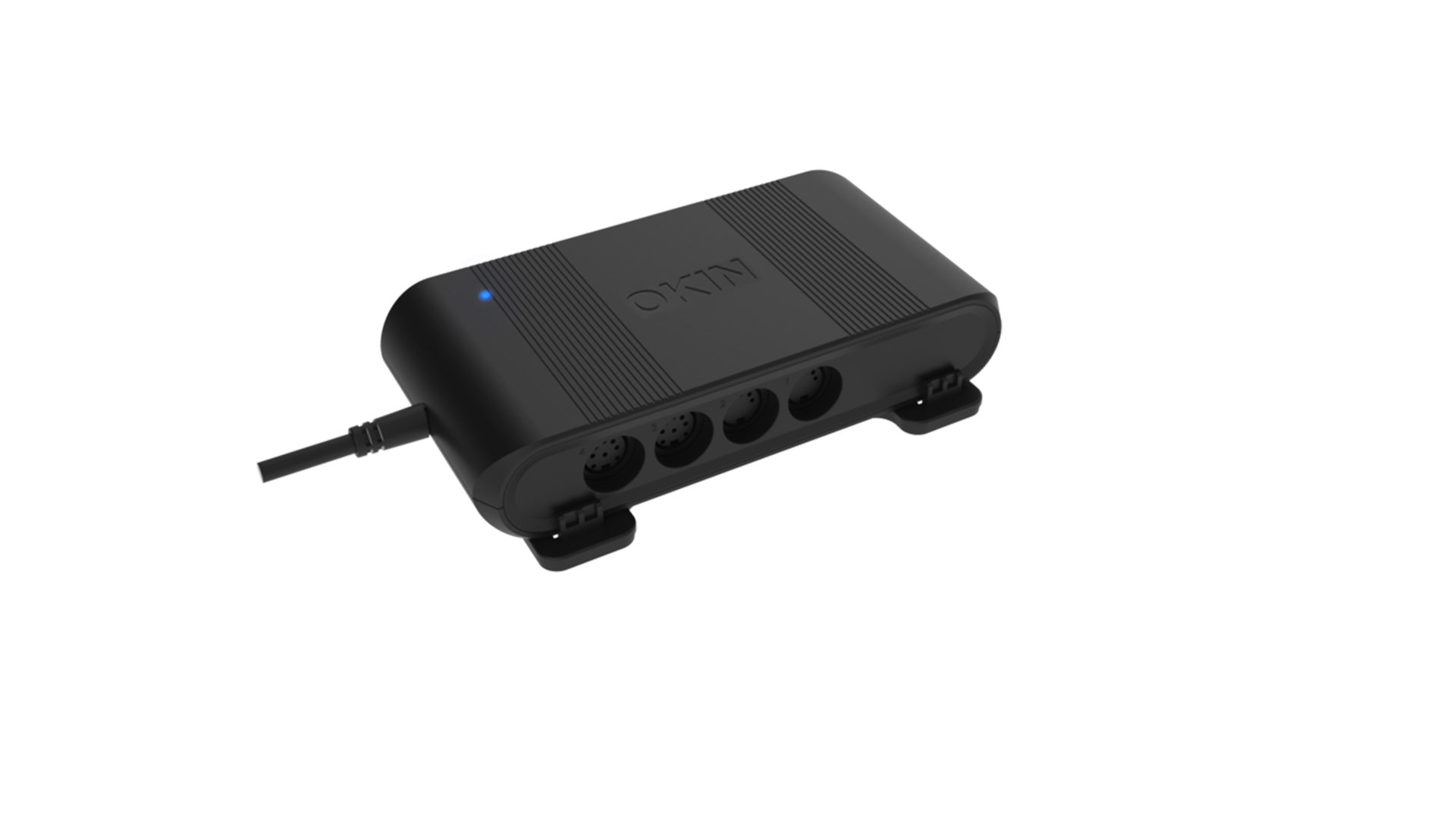

The CU165 control unit is ideal for complex applications. It can connect up to four drives with a Hall sensor and PWM control unit, and also features built-in bi-directional 2.4 GHz radio control. Signals from the wireless hand-held transmitter can be reliably transmitted thanks to OKIN's patented, absolutely interference-free 2.4 GHz radio transmission technology. Integrated Bluetooth enables convenient operations using a smartphone and tablet. The CU165 can be combined with all OKIN wireless hand-held transmitters (2.4 GHz bi-directional) as well as with the OKIN Powerpack. Customized programming of the control unit is also possible.

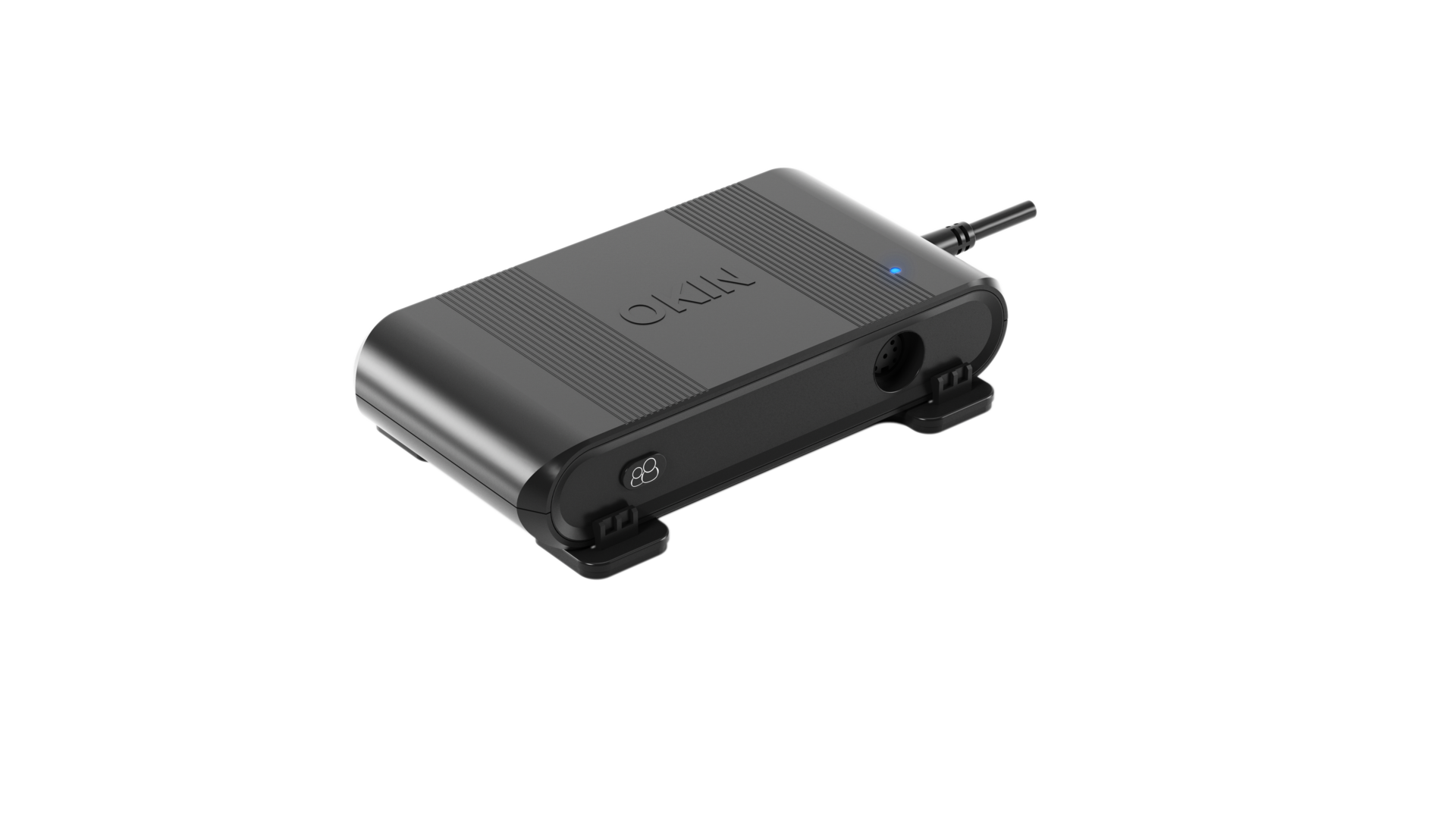

The very compact design and the stylish housing without visible screw connections ensure a high degree of versatility. Using the corresponding mounting plate, this unit is easy to install onto furniture. An external voltage source is used to ensure the power supply. The CU165 control unit also comes with an over-current switch-off mechanism to optimally protect the system and a separate housing key to activate the return (reset) adjustment.

  • Max. 4 drives with Hall sensor
  • Integrated 2.4 GHz radio bidirectional controller
  • Integrated Bluetooth for iOS and Android
  • Power supplied via external voltage source (DC)
  • Key for reset function
  • Mounting plate

Customer benefits

Small and compact design

Can be combined with the OKIN Powerpack

Can be combined with all OKIN wireless hand-held transmitters (2.4 GHz bidirectional)

Stylish housing without visible screw connections

Easy to install because of mounting plate

Customized programming

Double PWM

Standard configurations

Performance data

Controller

2.4 GHz radio bi-directional controller

Connection options

4 drives with Hall sensors and PWM controller

Connecting voltage

29 V DC

Output voltage

29 V DC

Safety

Overload current switch-off

Housing colour

Housing: black RAL 9005

Additional data

Protection degree

IP20

Protection class

III

Relative air humidity

30 to 75 %

Ambient temperature

+10 to +40 °C

Connecting cable

Attached supply cable

Mounting options

Mounting plate
