Nocturne
Versatile handset with an elegant design

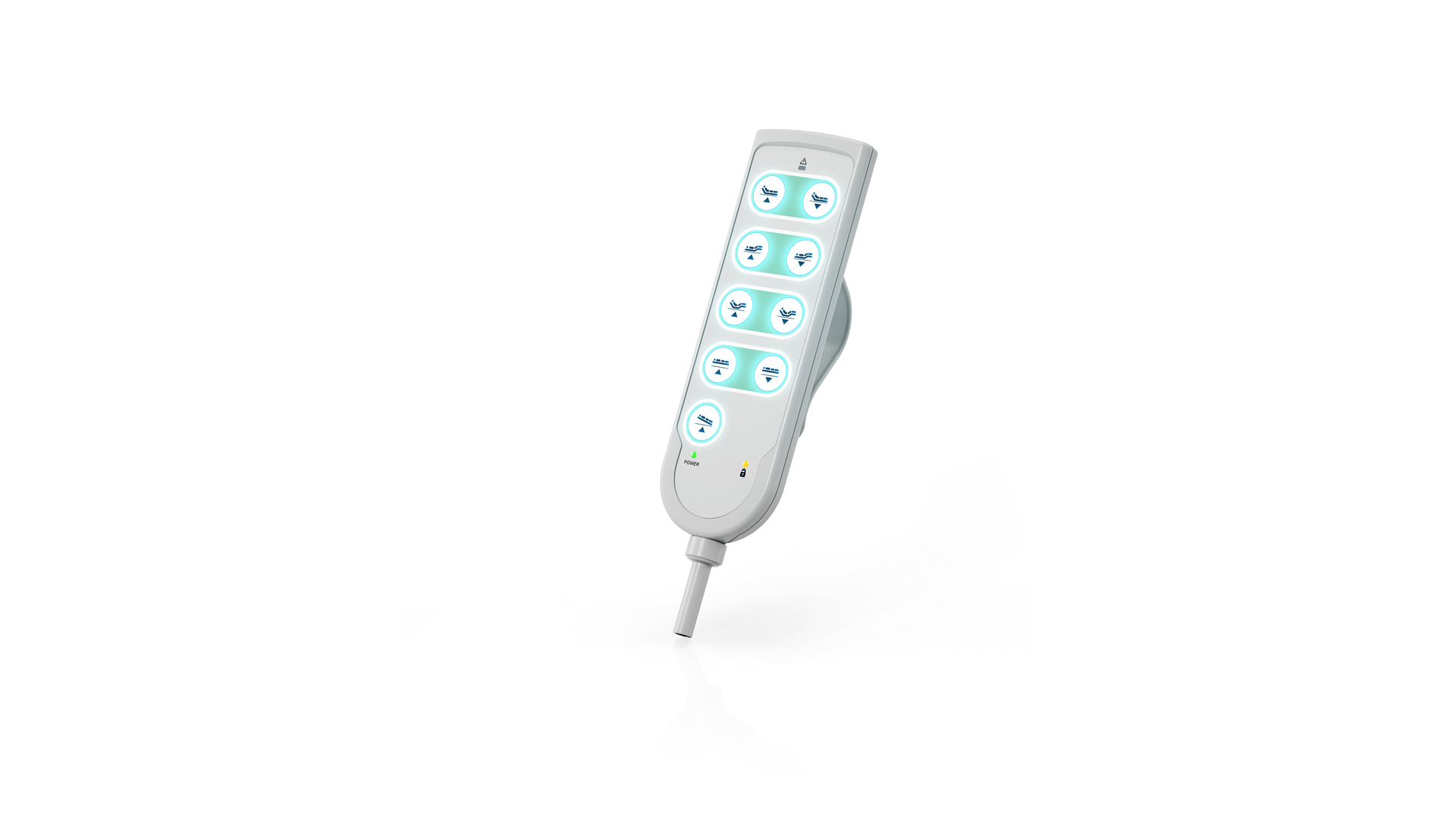

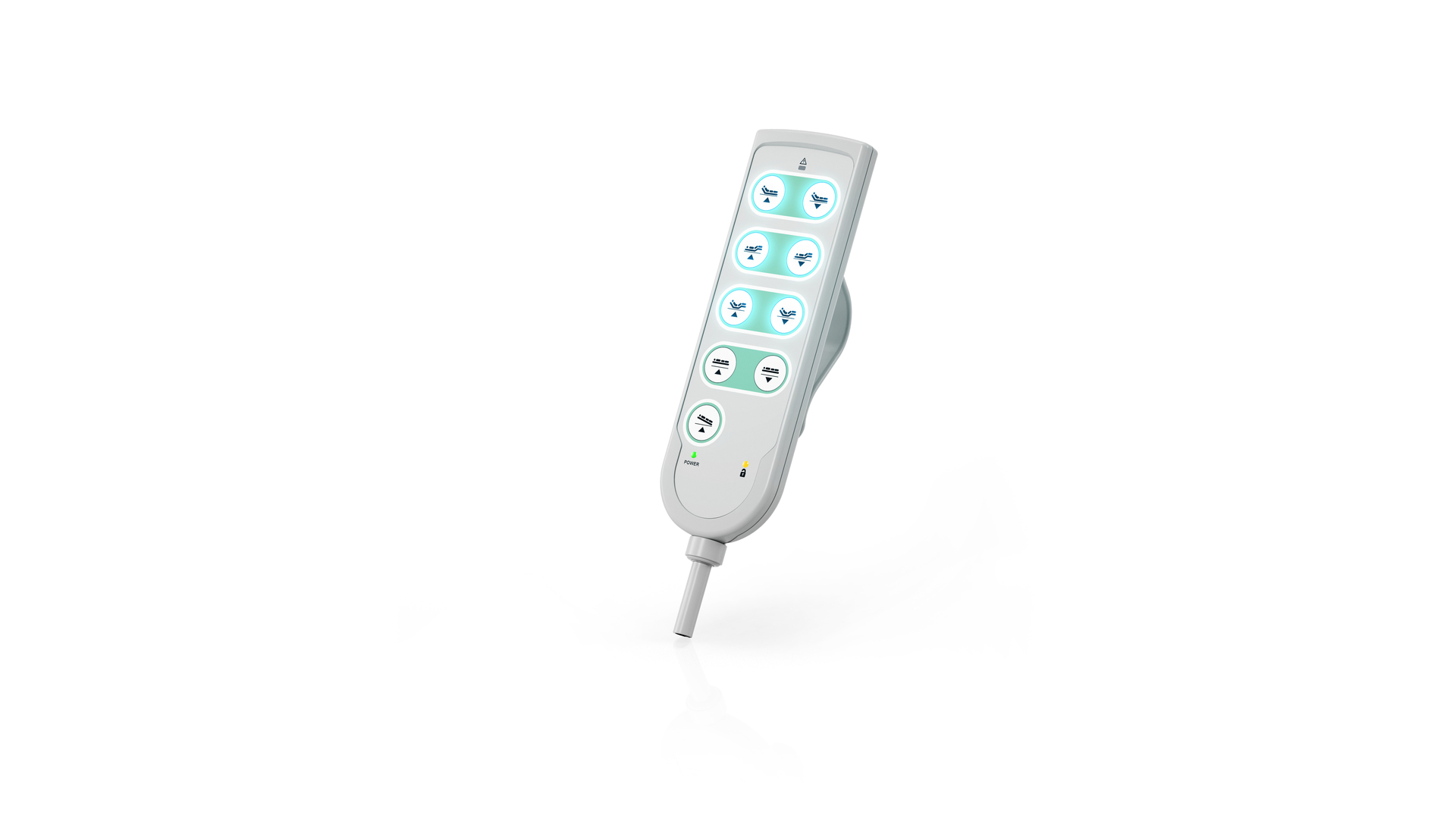

The Nocturne handset combines robustness and versatility with a slim, elegant design. It is suitable for controlling up to four drives, has up to eleven keys and a reset function. A special feature is the intelligent backlight that always ensures an excellent view of the keys.
The standard-compliant keypad of the Nocturne handset has function LEDs and a combined power-on/charge level indicator. The handset is easy to clean thanks to its smooth surface. On request, the Nocturne can be equipped with a customised foil design. Moreover, the handset is available in a version with an integrated mechanical multi-level locking function.
The Nocturne combines robustness and versatility with a slim, elegant design as well as an intelligent backlight.
Customer benefits
Keys: max. 11 |
|
Suitable for max. 4 drives incl. reset function |
|
standard-compliant keypad |
|
smooth surface for easy cleaning |
|
Configuration options: integrated mechanical multi-level locking function |
Standard configurations
Performance characteristics |
|
|---|---|
Control type |
Relay control |
Displays |
Combined power on/charge level indicator Function LED |
Number of keys |
Max. 11 keys |
Drives |
For up to 4 drives, including reset function |
Surface |
Smooth surface for easy cleaning |
Protection degree |
IPX4 |
Safety |
Single-fault protection |
Housing colour |
Grey RAL 7035 |
Extra configurations
Attachment mount |
Hook |
Customised printing |
Customised foil design is available on request |
Configuration options |
Integrated mechanical multi-level locking function |
Lighting |
Backlight (also selectively for unlocked functions) |
Protection degree |
IPX6 |
Additional characteristics |
|
|---|---|
Relative humidity |
30% - 75% |
Ambient temperatures |
+10 °C - +40 °C |
