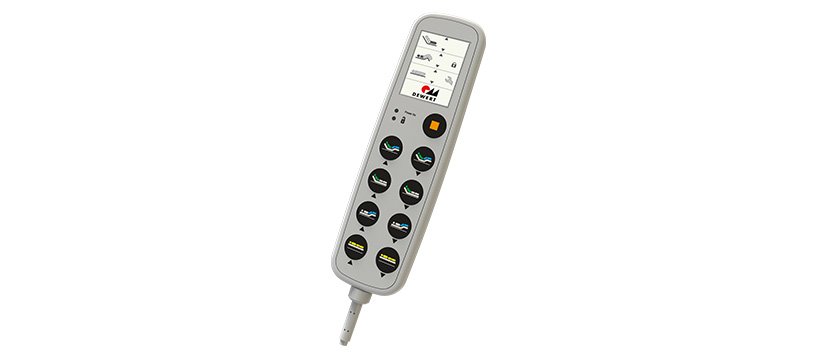

IPROXX 2 Display
Intuitive handset for nursing beds
The single-fault protected Dewert IPROXX 2 Display handset offers patients and nursing staff not only robustness and versatility, but also a sleek, elegant design. Thanks to the fully integrated LCD display, operation is extremely intuitive and user-friendly.
The IPROXX 2 Display is suitable for controlling up to four drives and has up to nine keys, including a reset function. Its standard-compliant keypad has a smooth surface for easier cleaning of the handset. A customised foil design is available on request. The IPROXX 2 Display is available as a custom configuration with an integrated mechanical or programmable multi-level locking function.
The IPROXX 2 Display combines robustness and versatility with a sleek, elegant design and the many possibilities offered by a fully integrated LCD display.
Customer benefits
Keys: max. 9 |
|
Suitable for max. 4 drives incl. reset function |
|
standard-compliant keypad |
|
smooth surface for easy cleaning |
|
Configuration options: integrated mechanical or programmable multi-level locking function |
Standard configurations
Performance characteristics |
|
|---|---|
Control type |
Relay control |
Displays |
2.5" LCD display |
| Combined power on/charge level indicator | |
| Function LED | |
Number of keys |
Max. 9 keys |
Drives |
Suitable for max. 4 drives |
Surface |
Smooth surface for easy cleaning |
Protection degree |
IPX4 |
Safety |
Single-fault protection |
Housing colour |
Grey RAL 7035 |
Extra configurations
Attachment mount |
Hook |
Customised printing |
Customised foil design is available on request |
Configuration options |
Integrated mechanical or programmable multi-level locking function |
Protection degree |
IPX6 |
Additional characteristics |
|
|---|---|
Relative humidity |
30% to 75% |
Ambient temperatures |
+10 °C to +40 °C |
